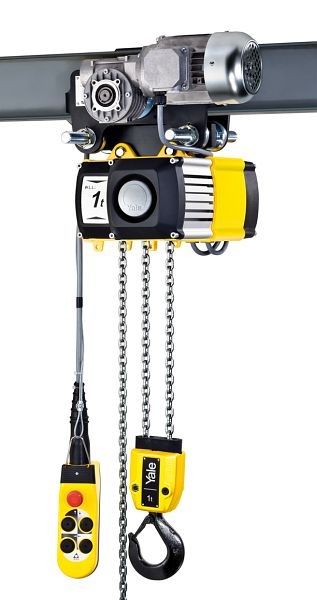

Description
Capacity 125 – 2000 kg
Excluding chain box
Including VTE trolley
(Hoist with one lifting speed, trolley with one travel speed)
Features
– Increased operating safety due to 42 V control voltage (extra low voltage control) and IP 65 button box.
– High and low limit switches, which considerably extend the service life of the governor, motor and gearbox.
– Overload protection (torque limiter) is included in all CPVs for added safety.
– Electromagnetic brake keeps the load safe even in case of power failure.
– Different types of suspension are available, such as the high hook, or the integrated trolley. A return to another type of suspension is possible.
– Chain length (lifting height) on request.
– Oil bath lubrication of the gearbox and case hardened helical gear train to ensure smooth operation and long life. For CPV/F 2-8, 5-4, CPV 2-4 and 5-2 the gear train is lubricated with grease.
– Steel chain guide
– POM chain guide for CPV/F 2-8 and 5-4 and also CPV 2-4 and 5-2.
– IP 55 protection against dust and water ingress.
– 2-year warranty (except for wearing parts) and lifetime lubrication of the housing.
